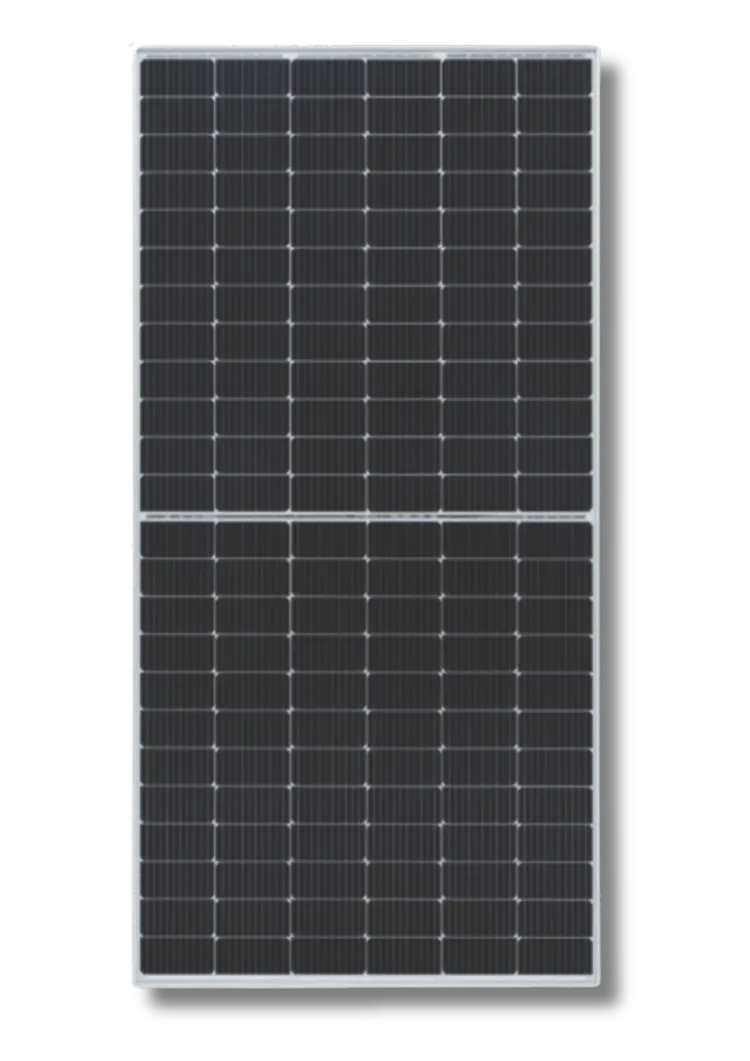

UKSOL UKS-S132-M10N-R1 Solar Panel (595W–625W)

UKSOL Solar Panel – 595W to 625W

General Specifications

• Brand: UKSOL
• Module Type: TOPCon Monocrystalline Solar Module
• Cell Technology: Half-Cell + Multi Busbar (MBB)
• Number of Cells: 132 Cells (182mm Half-Cell)
• Maximum Power Output: 595W – 625W
• Module Efficiency: Up to 23.1%UKSOL+S132-M10N-R1+595-625Wاللو…

Electrical Specifications (STC)

• Maximum Power (Pmax): 595W – 625W
• Optimum Operating Voltage (Vmp): 39.9 – 41.1 V
• Optimum Operating Current (Imp): 14.91 – 15.21 A
• Open Circuit Voltage (Voc): 48.0 – 49.2 V
• Short Circuit Current (Isc): 15.83 – 16.22 A
• Power Tolerance: 0 ~ +5 WUKSOL+S132-M10N-R1+595-625Wاللو…

STC Conditions:
Irradiance 1000W/m² – Cell temperature 25°C – AM1.5

Mechanical Specifications

• Solar Cells: N-Type TOPCon Monocrystalline
• Module Dimensions: 2382 × 1134 × 35 mm
• Weight: 30 kg
• Front Glass: 3.2 mm tempered glass with anti-reflective coating
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68 waterproof and dustproof
• Bypass Diodes: 3
• Cable: 4 mm² PV cable
• Cable Length: 350 mm (customizable)UKSOL+S132-M10N-R1+595-625Wاللو…

Operating Conditions

• Maximum System Voltage: 1500V DC
• Operating Temperature: −40°C to +85°C
• Maximum Series Fuse Rating: 30A
• Wind Load Resistance: 2400 Pa
• Snow Load Resistance: 5400 Pa
• Connector Type: MC4 CompatibleUKSOL+S132-M10N-R1+595-625Wاللو…

Temperature Characteristics

• Temperature Coefficient (Pmax): −0.29% / °C
• Temperature Coefficient (Voc): −0.25% / °C
• Temperature Coefficient (Isc): +0.046% / °C
• NMOT: 42°C ±2°CUKSOL+S132-M10N-R1+595-625Wاللو…

Warranty

• 30 Years Performance Warranty
• 15 Years Product & Manufacturing Warranty
• First Year Degradation: 1%
• Annual Degradation: 0.40%
