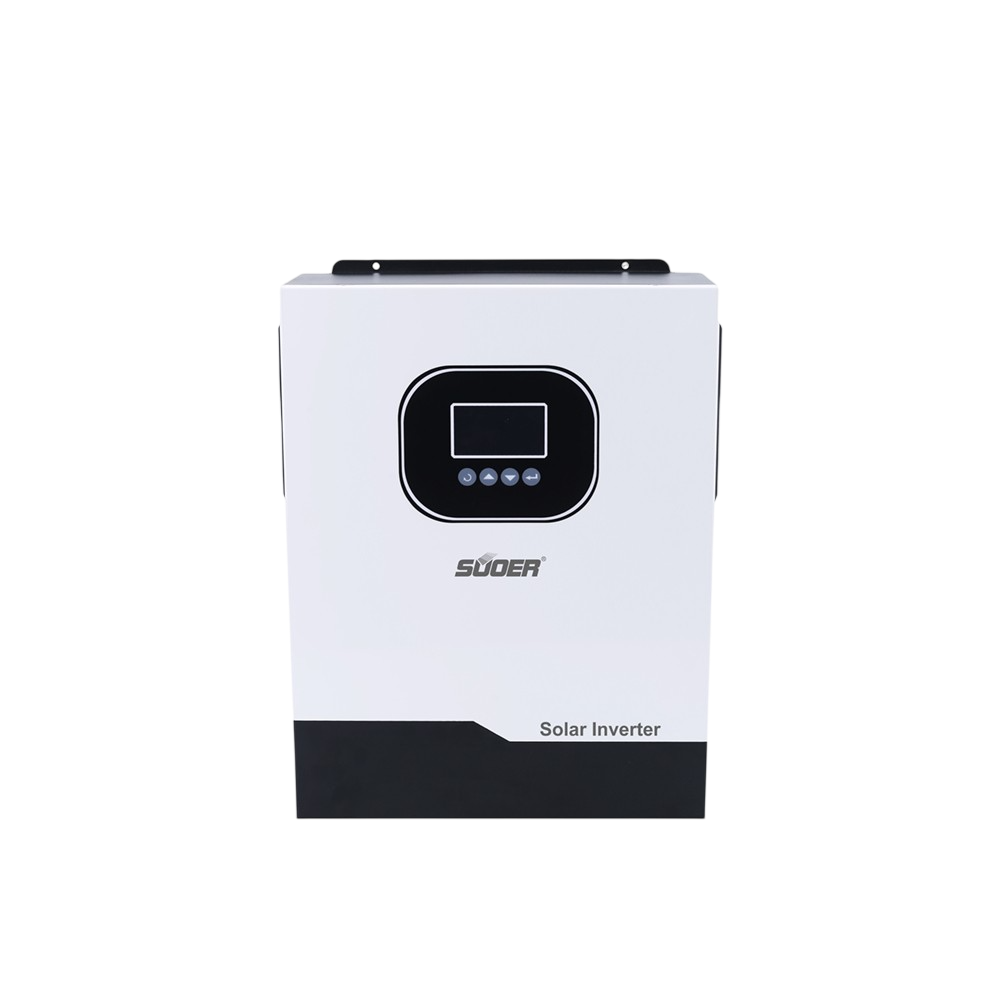

SUOER INVERTER vms-v6.2K-48-hg
ع.د490,000
عرض خاص
was ع.د539,000 وفر ع.د49,000
متوفر في المتجر
حفظ هذا المنتج في وقت لاحق
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
تفاصيل المنتج
- 6.2kw
- 1*MPPT
- PURE SINE WAVE 220/230/240 VAC
- BATTERY VOLAGE 40-63DC
- MPPT RANG 60-450 VDC
- 65000 W PV ARRAY POWER
- OPERATING TEMPERATURE -10C -50C
AC Input / Output
| Item | Specification |
|---|---|
| Rated Power | 6200W |
| Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Frequency Range | 50Hz / 60Hz |
Grid-tie Output
| Item | Specification |
|---|---|
| Feed-in Grid Voltage Range | 195-253VAC |
| Feed-in Grid Frequency Range | 49-51±1Hz |
| Maximum Load | 6200W |
| Maximum Second Load | 2066W |
Battery & AC Charger
| Item | Specification |
|---|---|
| Battery Voltage | 40-63VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
Solar Charger & AC Charger
| Item | Specification |
|---|---|
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 6500W |
| Max Solar Charging Current | 120A |
| MPPT Range @ Operating Voltage | 60-450VDC |
| Maximum Solar Charge Current | 120A |
| Max AC Charging Current | 100A |
| Nominal PV Voltage | 360VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| BMS Communication Interface | RS485 |
| APP Monitoring Interface | RS232 |
Physical
| Item | Specification |
|---|---|
| Dimension (D×W×H) | 120 × 344 × 440 mm |
| Net Weight | 9.4 kg |
Operating Environment
| Item | Specification |
|---|---|
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C |
SUOER INVERTER vms-v6.2K-48-hg
