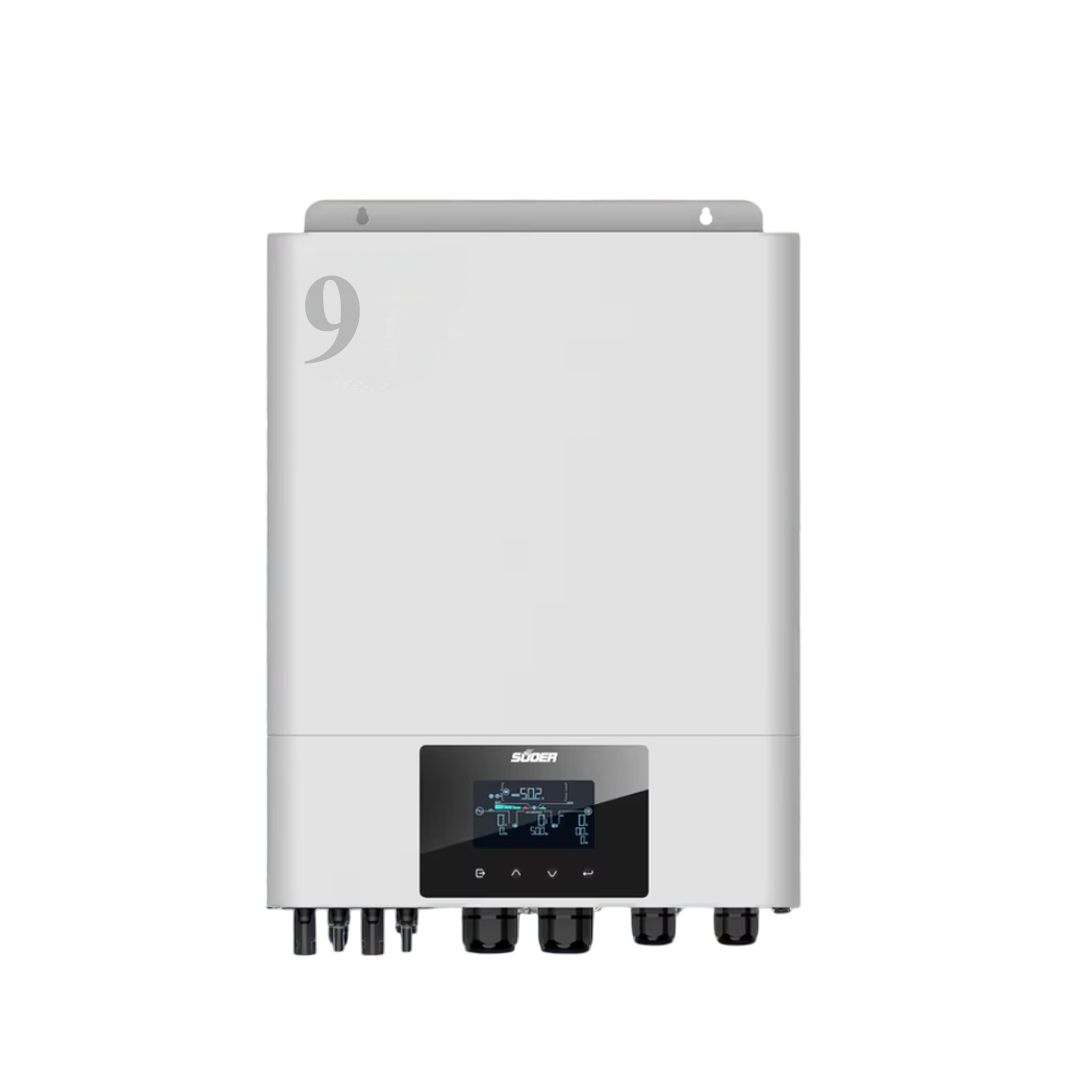

SUOER INVERTER vms-v-9K-48-hg
ع.د980,000
عرض خاص
was ع.د1,078,000 وفر ع.د98,000
متوفر في المتجر
حفظ هذا المنتج في وقت لاحق
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
تفاصيل المنتج
- 9kw
- 2*MPPT
- PURE SINE WAVE 220/230/240 VAC
- BATTERY VOLAGE 40-63DC
- MPPT RANG 90-450 VDC
-12000 W(5500 W*2) PV ARRAY POWER
- OPERATING TEMPERATURE -10C -50C
AC Input / AC Output
| Item | Specification |
|---|---|
| Rated Power | 9000W |
| Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Frequency Range | 50 Hz / 60 Hz |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| Transfer Time | 10 ms (For Personal Computers) |
| 20 ms (For Home Appliances) |
Grid-tie output
| Item | Specification |
|---|---|
| Feed-in Grid Voltage Range | 195-253VAC |
| Feed-in Grid Frequency Range | 49-51±1Hz / 59-61±1Hz |
| Maximum Load | 9000W |
Battery & AC Charger
| Item | Specification |
|---|---|
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 66VDC |
Solar Charger & AC Charger
| Item | Specification |
|---|---|
| Solar Charger Type | Dual MPPT |
| Maximum PV Array Power | 11000W (5500W ×2) |
| Max Solar Charging Current | 150A |
| MPPT Range @ Operating Voltage | 90-450VDC |
| Max AC Charging Current | 120A |
| Maximum PV Input Current | 18A ×2 |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| BMS Communication Interface | RS485 |
| APP Monitoring Interface | RS485 |
| Parallel Function | Optional up to 6 units |
Physical
| Item | Specification |
|---|---|
| Dimension (D×W×H) | 147 × 432 × 553 mm |
| Net Weight | 17.2 kg |
Operating Environment
| Item | Specification |
|---|---|
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C |
