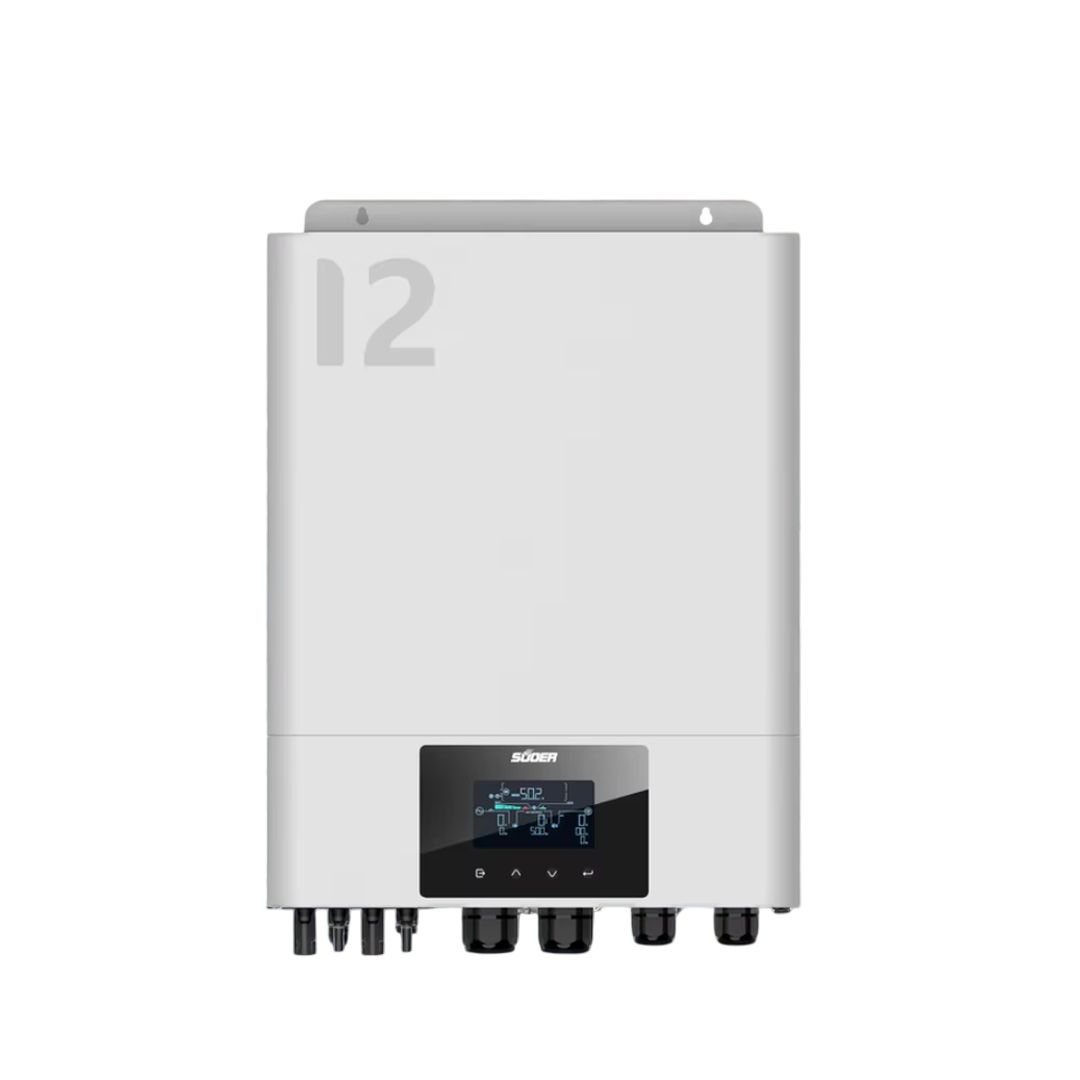

SUOER INVERTER vms-v-12K-48-hg
ع.د1,155,000
عرض خاص
was ع.د1,270,500 وفر ع.د115,500
متوفر في المتجر
حفظ هذا المنتج في وقت لاحق
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
تفاصيل المنتج
- 12kw
- 2*MPPT
- PURE SINE WAVE 220/230/240 VAC
- BATTERY VOLAGE 40-63DC
- MPPT RANG 90-450 VDC
-12000 W(6000 W*2) PV ARRAY POWER
- OPERATING TEMPERATURE -10C -50C
Table 1 – Line Mode Specifications
| Item | Specification |
|---|---|
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Loss Voltage | 90Vac±7V (Appliances) / 170Vac±7V (UPS) |
| Low Loss Return Voltage | 100Vac±7V (Appliances) |
| High Loss Voltage | 280Vac±7V |
| High Loss Return Voltage | 270Vac±7V |
| Max AC Input Voltage | 300Vac |
| Max AC Input Current | 60A |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| Low Loss Frequency | 40±1Hz |
| Low Loss Return Frequency | 42±1Hz |
| High Loss Frequency | 65±1Hz |
| High Loss Return Frequency | 63±1Hz |
| Output Short Circuit Protection | Line mode: Circuit Breaker (70A) |
| Efficiency (Line Mode) | >95% (Rated load, battery full charged) |
| Transfer Time | 10ms typical (UPS) / 20ms typical (Appliances) |
Table 2 – Inverter Mode Specifications
| Item | Specification |
|---|---|
| Rated Output Power | 12000W |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 230Vac ±5% |
| Output Frequency | 50Hz or 60Hz |
| Peak Efficiency | 93% |
| Surge Capacity | 2 × rated power for 5 seconds |
| High DC Cut-off Voltage | 63Vdc |
| Low DC Cut-off Voltage | 44Vdc |
| Nominal DC Input Voltage | 48Vdc |
| Cold Start Voltage | 46.0Vdc |
| High DC Recovery Voltage | 61Vdc |
| High DC Cut-off Voltage | 63Vdc |
| THDV | <5% (linear load), <10% (non-linear load) |
| DC offset | ≤100mV |
Table 3 – Charge Mode Specifications
| Item | Specification |
|---|---|
| Bulk Charging Voltage (AGM/Gel) | 56.4Vdc |
| Floating Charging Voltage | 54Vdc |
| Overcharge Protection | 63Vdc |
| Charging Algorithm | 3-Step |
Solar Input
| Item | Specification |
|---|---|
| Rated Power | 12000W |
| Max PV Array Open Circuit Voltage | 500Vdc |
| PV Array MPPT Voltage Range | 90Vdc – 450Vdc |
| Max Input Current | 27A ×2 (MAX 40A) |
| Max Charging Current | 150A |
| Start-up Voltage | 80V ±5Vdc |
Table 4 – General Specifications
| Item | Specification |
|---|---|
| Safety Certification | CE |
| Operating Temperature Range | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Dimension (D×W×H) | 147.4 × 432.5 × 553.6 mm |
| Net Weight | 18.4 kg |
Parallel Specifications
| Item | Specification |
|---|---|
| Max parallel numbers | 6 units |
| Transfer time in parallel mode | Max 50ms |
| Parallel Kit | YES |
