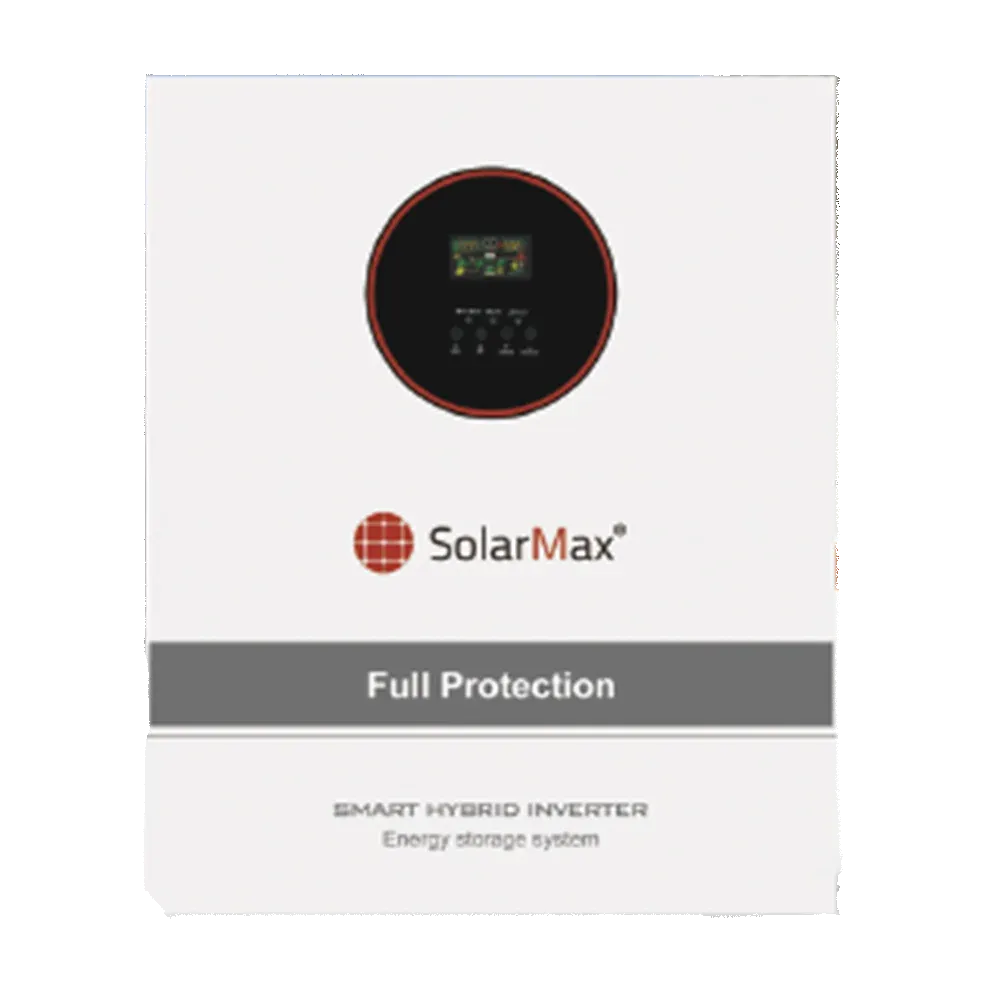

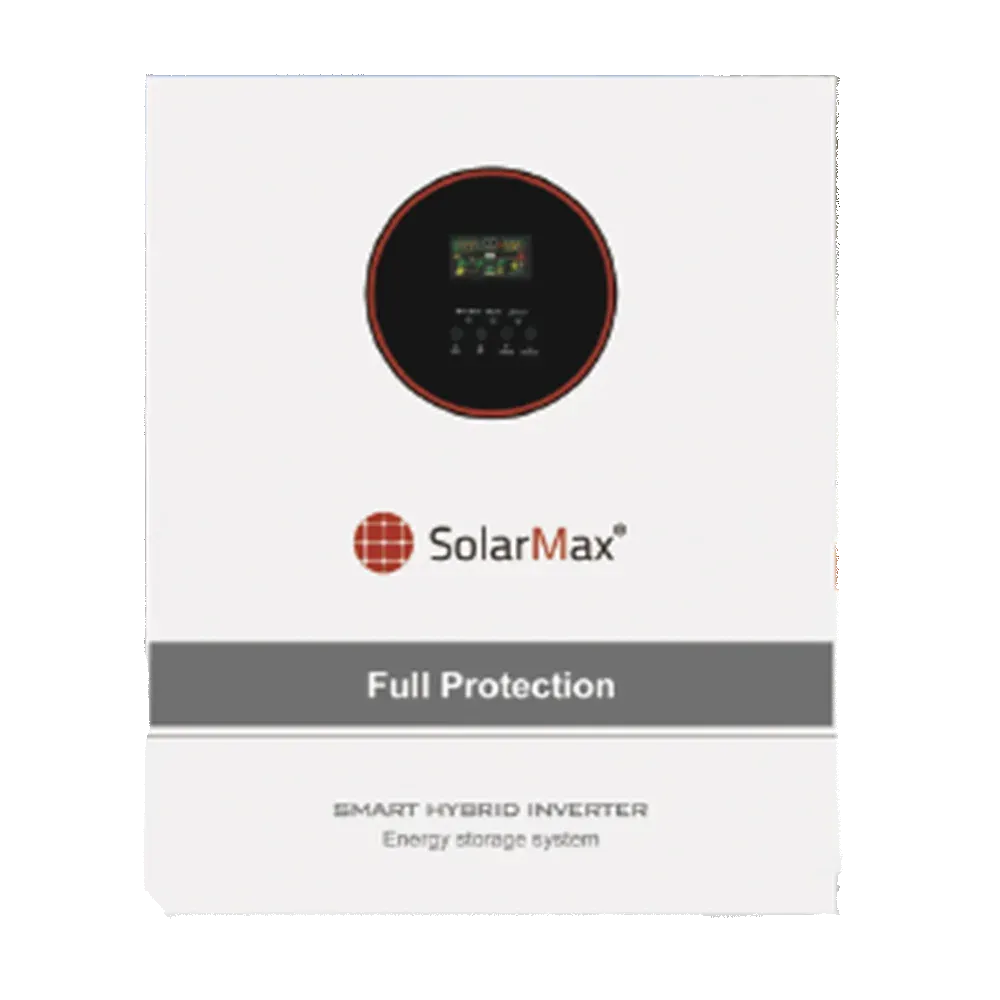

SolarMax MAX-11KW 48V Hybrid Inverter

MAX-11KW 48V – PARAMETERS

Phase: Single Phase
Nominal Voltage: 220/230/240VAC
Voltage Range: 90-280VAC±3V (Normal Mode) / 170-280VAC±3V (UPS Mode)
Frequency Range: 50Hz/60Hz (Adaptive)

OUTPUT
Rated Power: 11000W
PV Mode: 12000W
Battery Mode/AC Mode: 11000W
Output Voltage(AC): 220/230/240VAC±5%
Output Frequency: 50/60Hz±0.1%
Dual Output Rated Power: Main Load: 11000W , Second Load: 11000W
Waveform: Pure Sine Wave
Transfer Time(Adjustable): 10ms for Computer , 20ms for Home Appliances
Peak Power: 22000VA
Overload(Battery Mode):
105%~150% Load: 1s , 150%~200% Load: 2s , >200% Load: 400ms
Peak Efficiency(Battery Mode): >94%

GRID-TIE
Output Voltage: 220/230/240VAC
Feed-in Grid Voltage: 170 - 264.5 VAC
Feed-in Grid Frequency Range: 49~51Hz / 59~61Hz
Rated Feed-in Grid Current: 47.8A
Peak Efficiency (DC/AC): 98%

BATTERY
Battery Type: Lead-acid / Gel / Tubular / Lithium
Rated Voltage: 48VDC
Constant Voltage Charging Voltage: 56.4VDC (Adjustable)
Floating Charge Voltage: 54VDC (Adjustable)

CHARGER
PV Charging Method: Dual MPPT
PV Max Input Power: 11000W (5500W+5500W)
MPPT Tracking Range: 90~500 VDC
Best PV Voltage Range: 360~430 VDC
Max PV Input Voltage: 500 VDC
Max PV Input Current: 18A+18A
Max PV Charging Current: 150A
Max AC Charging Current: 150A

COMMUNICATION PORT
RS232: For External WiFi device / Monitoring & Update
RS485: For BMS Communication
Dry Connect: Support sending signal to start generator
Parallel Connection: Support maximum 9 units , Support three phase

ENVIRONMENTAL PARAMETERS
Operating environment temperature: -10~50℃
Operating environment humidity: 20%~95% (Non condensing)
Storage temperature: -15~60℃
Altitude: The altitude should not exceed 1000m, derating above 1000m, up to 4000m
Noise: ≤50db
Certifications: IEC 62109-1, IEC 62109-2, IEC 61683
