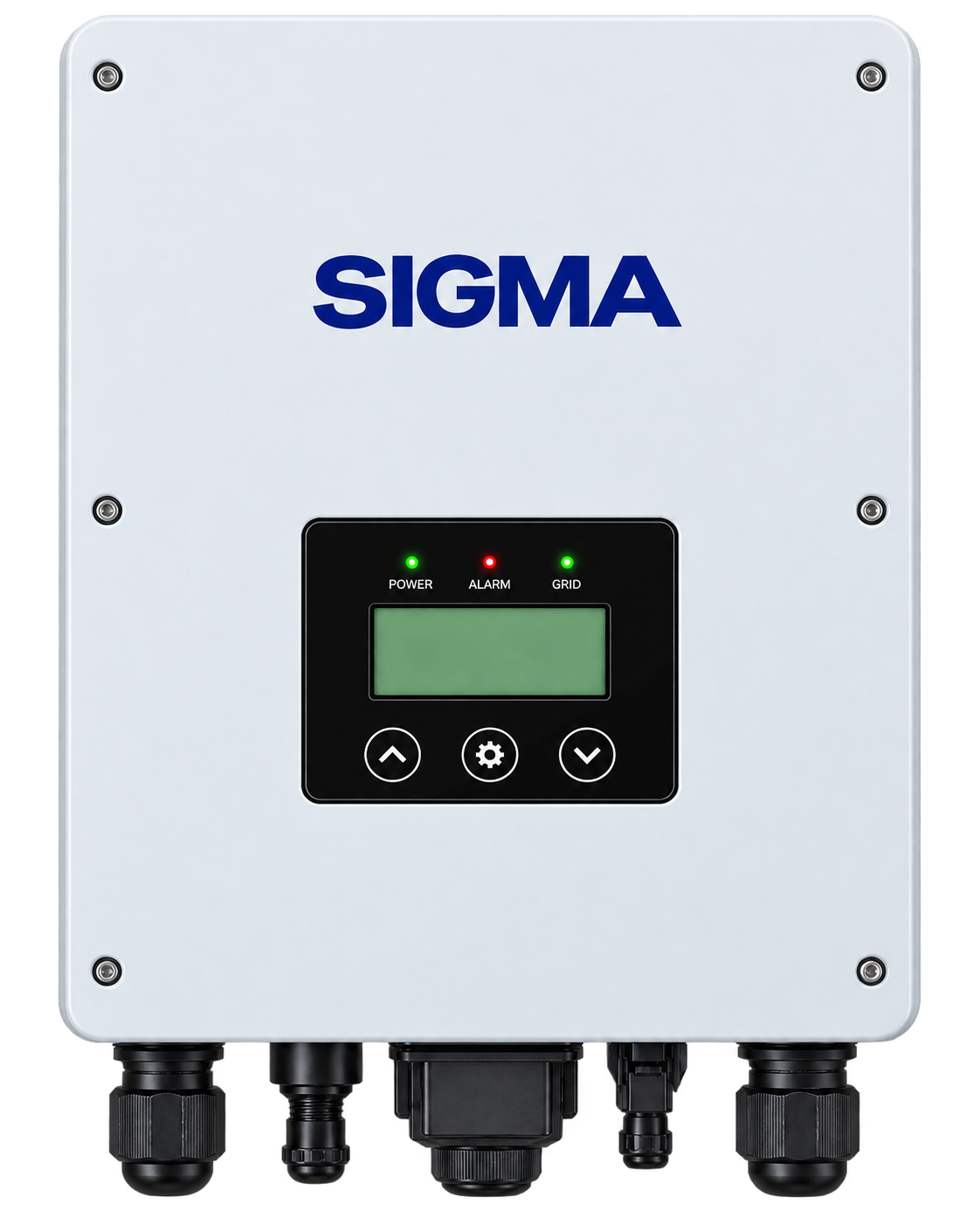

SIGMA 11kW Hybrid Solar Inverter – Single Phase – IP21
د.ع950,000
متوفر في المتجر
حفظ هذا المنتج في وقت لاحق
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
تفاصيل المنتج
| المواصفات | القيمة |
|---|---|
| Brand | SIGMA Green Power |
| Rated Power | 11 kW / 11,000W |
| Rated Capacity | 11 kVA / 11 kW |
| Inverter Type | Hybrid Solar Inverter |
| Phase | Single Phase |
| Battery Voltage | 48V DC – Low Voltage |
| Battery Type | Lithium / Lead-Acid |
| Lithium Communication | RS485 |
| AC Input Voltage | 230V AC |
| AC Input Range | 90–280V / 170–280V AC |
| AC Output Voltage | 220 / 230 / 240V AC |
| Rated Output Current @ 230V | حوالي 47.8A |
| Output Frequency | 50 / 60Hz |
| Output Waveform | Pure Sine Wave |
| Surge Power | 22,000VA |
| Solar Charger | MPPT |
| MPPT Trackers | 2 MPPT – Dual MPPT |
| Max. PV Input Power | 11,000W (2 × 5,500W) |
| Max. PV Open Circuit Voltage | 500V DC |
| MPPT Voltage Range | 60–500V DC |
| Max. PV Input Current | 18A × 2 |
| Max. Solar Charging Current | 160A |
| Max. AC Charging Current | 120A |
| Max. Total Charging Current | 160A |
| Max. Battery Discharge Current | حوالي 220A |
| Transfer Time | 10ms PC / 20ms Appliances |
| Peak Efficiency | تقريباً 94–96% |
| Dual Output | Yes |
| Battery-less Operation | مدعوم حسب النسخة |
| Communication | RS232 / RS485 / Dry Contact |
| Wi-Fi | Optional / حسب النسخة |
| Display | LCD |
| Protection Rating | IP21 |
| Installation | Indoor |
| Operating Temperature | -10°C إلى +55°C |
| Humidity | 5–95% RH |
| Approx. Dimensions | حوالي 540 × 403–415 × 122 mm |
| Approx. Weight | حوالي 14.8–15.5 kg |
