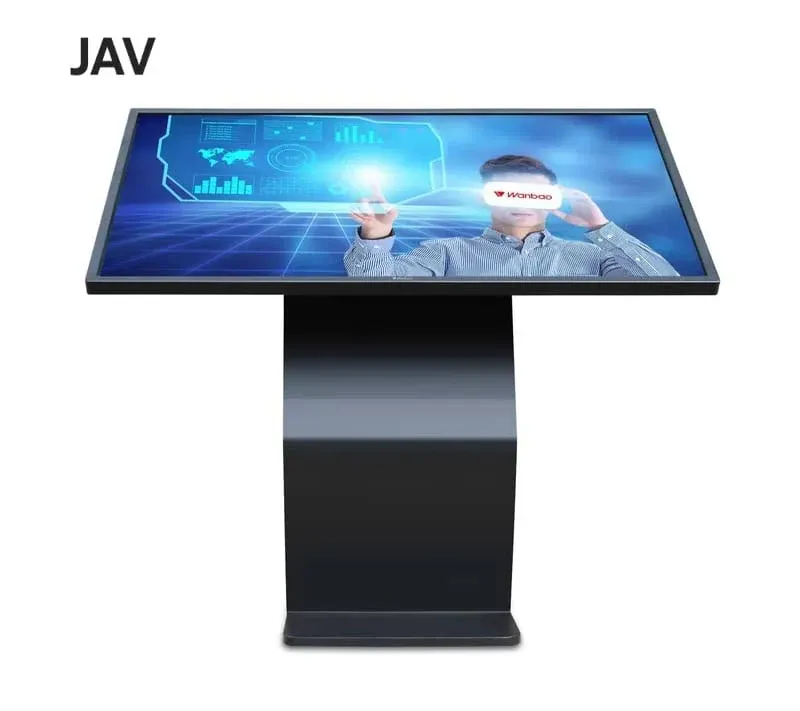

(شاشة تفاعلية )JAV QUERY MACHINE LED430C118L

Touch recognition mode

Built-in infrared optical touch recognition( Support simultaneous 10 point continuous input

Effective identification range

Finger, stylus or other non-transparent object with diameter not less than 5mm (8mm for multiple points)

Positioning accuracy

±2mm More than 90% of the touch area

response time

8mm( The cursor speed is about 120 points /s)

Touch resolution

H：32767V：32767

Touch life

≥80 thousand hours

PCB hardware configuration parameters

Main chip model

TSUMV56RUU-Z1

RAM

Built-in main chip

Flash

32 MB

External extended storage

USB2.0 interface supports up to 256GB

PC module hardware configuration parameters

Configuration

Standerd

Professional

CPU

Intel Core i3

Intel Core i5

Chipset

NM76-2310 / H81-4130

NM70-2450 / H81-4460

RAM

4G DDR3

Built-in storage

Standard 120GB SSD (optional 500GB mechanical hard disk *)

GPU

Graphics Intel Core HD Graphics

The PC module

Interface configuration

Default type

1)USB2.0 x2

2)USB3.0 x2

3)RJ45 x1

4)HDMI (1.4a) x1

5)MIC x1

6)AUDIO LINE x1

7)VGA x1

8)Wi-Fi x1(support IEEE 802.11b/g/n)

9)Power start switch

10)One-key restore switch
