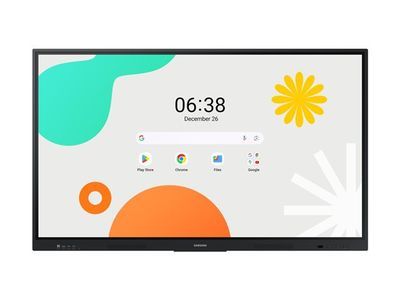

Samsung Interactive Display WA65F

Model

WAF

Panel

Diagonal Size

65"

Type

Direct, 60Hz

Resolution

3,840 x 2,160 (Landscape)

Brightness (Typ.)

400cd/m2

Contrast Ratio (Typ.)

1,200:1

Viewing Angle (H/V)

178:178

Haze

25%

Response Time(G-to-G)

8ms

Display

Dynamic C/R

4,000:1

Sound

Speaker Type

Built-in Speaker (15WX 2CH)

Connectivity

INPUT

RGB

N/A

VIDEO

HDMI 2 (Rear 1, Front 1) USB C (Front), OPS

AUDIO

1(Stereo Mini Jack)

USB

4(2.0 X2, 3.0X2)

OUTPUT

RGB

N/A

VIDEO

HDMI Out (Rear)

AUDIO

1(Stereo Mini Jack)

Touch Out

Touch Out 2 (Front 1, Rear 1)

INTERNAL

SENSOR

Eco Sensor

EXTERNAL

CONTROL

Touch Input RS232C In, RJ45 In

BT/Wi-Fi

Yes (Keyboard/Mouse)

Wi-Fi Protocol

Wi-Fi 5 (802.11ac)

Ethernet speed

1 Gbps

Touch

Type

IR

# of Touch

40 points

Touch Pen Type

Passive Pen

Object Recognition Range

Front Pen: 3mm Back Pen: 8mm Eraser: ≥9cm²

Object Recognition Range (Minimum)

2mm

Touch Response Time

≤5ms

Drawing Speed(Touch latency)

≤45ms

Thickness

3.2T

Hardness

Mohs 5

Power

Type

Internal

Power Supply

AC100-240V 50/60Hz

Power Consumption

Max [W/h]

286

Typical [W/h]

172

Rating [W/h]

371

Stand-by [W/h]

0.5

BTU [W/h]

388

Mechanical

Dimension (mm / in.)

Set

1482.1 x 891.4 x 87.7 mm / 58.4 x 35.1x 3.5 in.

Package

1640 x 1010 x 185 mm / 64.6 x 39.8 x 7.3 in.

Weight (kg / lbs.)

Set

35.2 kg / 77.6lbs.

Package

43.2 kg / 95.2 lbs.

VESA Mount

600 X 400

Protection Glass

Yes

Stand Type

Wall Mount

Media Player Option Type

OPS Slot support

Rotation

Landscape only

Power Cable Length

3m

Design

Vezel Color

Black

Operation

Operating Temperature

0℃~40℃

Humidity

10~90%

Feature

Key

EDLA Certified Android Model (Google Play supported)

Orientation

Landscape

H/W

Touch Overlay(IR), FrontConnectivity, OPS I/F Support, Eco Sensor, Wi-Fi/BT embedded

S/W

First screen

Home UI

Apps

Playstore, Chrome, Youtube, Google Drive, Note app, Screeshare, Finder, etc.

WebRTC

Yes

Screen Share

Yes

Internal Player (Embedded H/W)

Processor

A73X 4 + A53 X 4

RAM

8GB

Storage

64GB

Operating System

Android 14

Certification

Safety

IEC62368-1/UL62368-1/IEC60950-1 / IS13252

EMC

FCC CFR Title 47, Part 15, Subpart B/

EN55032:2015+A11:2020

Environment

ENERGY STAR

Security

WFA/WPA/WPA2/WPA3 personal/ WPS2.0

Accessories

Included

Power Cord, RemoteController, HDMI Cable,Touch Pen (2ea, Black), USB Cable, Warranty/QSG

Optional

Stand

N/A (3rd party company stand/mount can be supported through VESA)
