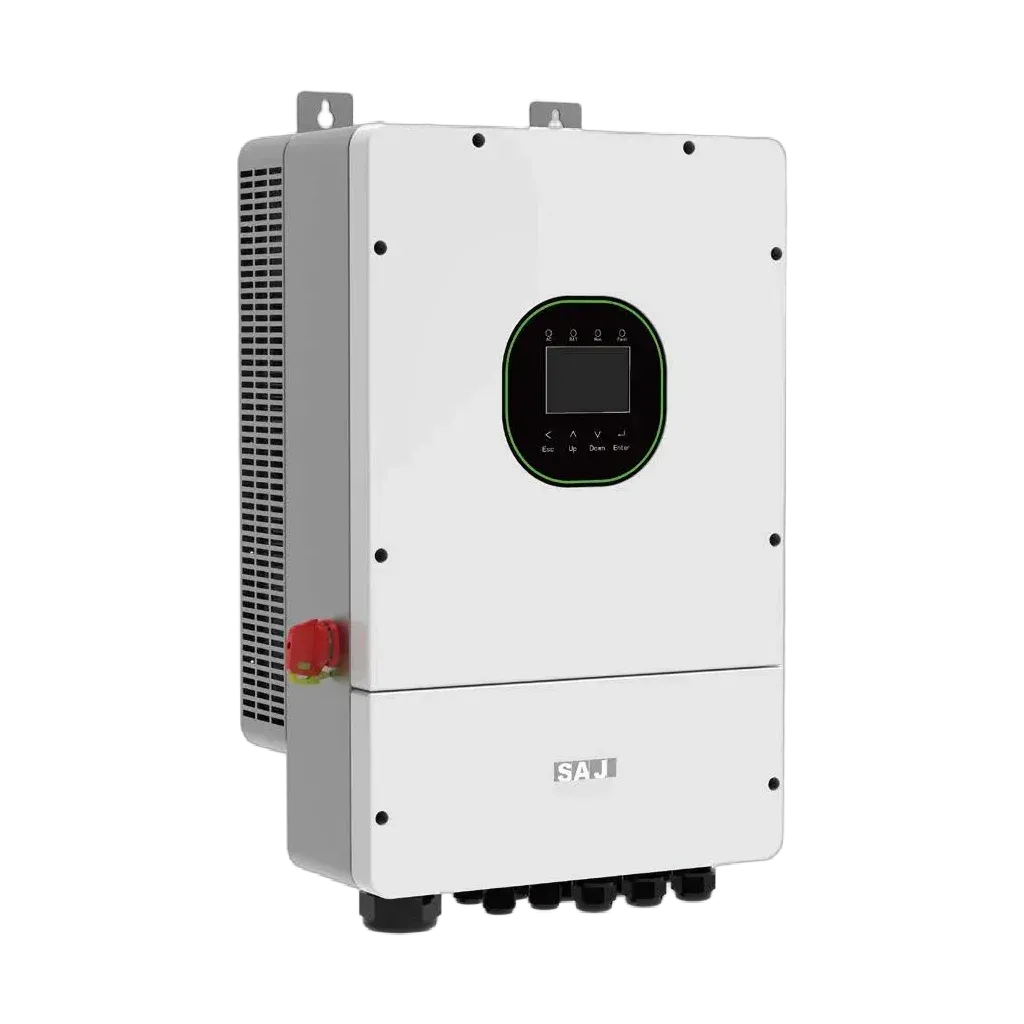

Name: SAJ HYBRID INVERTER 12KW IP65 WARRANTY 5YEARS
Price: 2550000.0 IQD
Availability: OutOfStock

SAJ HYBRID INVERTER 12KW IP65 WARRANTY 5YEARS

ع.د2,550,000

نفذت الكمية

was ~~ع.د2,650,000~~ وفر ع.د100,000

نفذت الكمية

حفظ هذا المنتج في وقت لاحق

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

تفاصيل المنتج

Colorful touch LCD, IP65 protection degree

Max. 20A PV input current; DC/AC access oversizing up to 200% Max 240A fast charge/discharge current

Heat-resistant (＞50℃with derating）

Suppok whole home backup function with up to 63 A bypass

Max. 4 pcs parallel for on-grid and off-grid operation, Suppok multipe batteries parallel

Integrated Intelligent energy management with generator, heat pump,solar system and smak load

Ultralight for easy installation and space-saving

MODEL	H2-5K-LS2	H2-6K-LS2	H2-7.6K-LS2	H2-8K-LS2	H2-10K-LS2	H2-12K-LS2
DC Input
Max. PV Access Power[Wp]@STC	10000	12000	15200	16000	20000	24000
Max PV Input Power[W]	8000	9600	12200	12800	16000	19200
Max. DC Voltage [V]	500
MPPT Voltage Range [V]	90～480
Rated DC Voltage [V]	360
Stak Voltage [V]	80
Max.DC InputCurrent [A]	20/20		40/40
Max.DC Shok Circuit Current [A]	25/25		50/50
No. of MPPT	2
Battery Parameters
Battery Type	Lead-acid or LiFePO4
Battery Voltage Range[V]	40～60
Max.Charging/Discharging Current [A]	100	120	190	190	240
AC Output[On-grid]
Rated AC Power [W]	5000	6000	7600	8000	10000	12000
Max.Apparent Power[VA]	5500	6600	8360	8800	10000	12000
Rated OutputCurrent [A]@230Vac	21.8	26	33	34.8	43.5	52.2
Max. OutputCurrent [A]	25	30	38	40	45.5	54.6
Rated AC Voltage/Range [V]	L+N+PE, 220,230,240/180～280
Rated OutputFrequency/Range [Hz]	50,60/45～55,55～65
Power Factor[cos φ]	0.8 leading～0.8 lagging
Total Harmonic Distokion [THDi]	<3%
AC Input[On-grid]
Rated AC Voltage/Range [V]	L+N+PE, 220,230,240/180～280
Rated InputFrequency [Hz]	50,60
Bypass Current[A]@230Vac	63
AC Output[Back-up]
Max.Output Power[VA]	5000	6000	7600	8000	10000	12000
Max. OutputCurrent [A]	25	30	38	40	45.5	54.6
Peak OutputApparent Power [VA]	2Times ，10S
Rated AC Voltage/Range [V]	L+N+PE, 220,230,240/180～280
Rated OutputFrequency/Range [Hz]	50,60/45～55,55～65
Output THDv (@ LinearLoad)	<3%
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	97.0%
Protection
Battery InputReverse Polarity Protection	Integrated
Over loadProtection	Integrated
AC Shok Circuit CurrentProtection	Integrated
DC SurgeProtection	Integrated
AC SurgeProtection	Integrated
Anti-islanding Protection	Integrated
AFCI Protection	Optional
RSD Protection	Optional
Interface
PV Connection	MC4
AC Connection	Terminal Block
Battery Connection	Terminal Block
Display	LCD+LED+APP
Communication	Wi-Fi/Ethernet/4G(Optional)
General Parameters
Topology	Non-isolated
Operating Temperature Range	-40℃ to +60℃ (50℃ to 60℃ with derating)
Cooling Method	Intelligent Fan cooling
Ambient Humidity	0-100% Non-condensing
Altitude	4000m (>3000m Power Derating)
Noise [dBA]	<50
Ingress Protection	IP65
Dimensions [HWD] [mm]	590380241
Weight [kg]	29.0
Warranty [Year]	5/10
Standard	EN 62109-1/2, EN 61000-6-1/2/3/4, IEC 62116, IEC 61727, IEC62183, PEA&MEA, NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097
