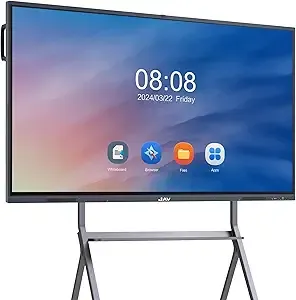

JAV 75" INTERACTIVE PANALIS LED75H12S-2
ع.د2,600,000
متوفر في المتجر
حفظ هذا المنتج في وقت لاحق
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
تفاصيل المنتج
1.1Product Features
- Super narrow frame design, audio & video module integration design, simple appearance
- 2 stylus suction slots, convenient storage
- Zero bonding technology, low optical parallax writing, wider viewing angle
- Anti-glare tempering glass, anti-dazzle AG explosion, the display is clearer.
- 2 front USB3.0 ,1 HDMI in ,1Touch USB and 1 type C, NFC,channel switching is more convenient.
- Support wireless sharing screen function.
- ±1.5mm precision infrared touch writing
- Support all in one Net-Com, Android and OPS with gigabyte ethernet.
- Support internet sharing
- 3588 Chipset, octa-core CPU, Android 13.0
- RAM 16G+ROM 256G
- Support up to 40 touch points
- Front six-button design, rich functions, one-key direct access
- 48 MP camera Auto Track, 8 Array Microphone
- Product Details
(5)4K UHD display, support full channel 4K UI.
(9)Support Wi-Fi 6, dual -frequency 2.4G/5G, AP+STA work pattern.
(10)Support 80PIN standard interface ultra-thin OPS (30MM
thickness), in the case of standby, wake by internet signal or channel through HDMI/VGA/RS232
1707 mm
22.99 mm
88 mm
3.Product Parameters
|
Model |
LED75H12S-2 |
|
Panel Size |
75inch |
|
Aspect |
16:9 |
|
Display Area |
1649(H)×928(V) |
|
Max. Resolution |
3840×2160 Pixels |
|
Backlight |
D-LED |
|
Response Time |
＜6ms |
|
Refreshing Frequency |
100Hz |
|
Display Color |
1.07B (10bit) |
|
Brightness |
≥500cd/m2 |
|
Contrast Ratio |
Base on the OC |
|
Viewing Angle |
178(H/V) |
|
Anti-glare |
Yes |
|
Sensing Type |
lnfrared recognition |
|
System |
Windows10/Windows8/Windows7/WindowsXP Android/Linux/MacOSX/Chrome |
|
Touch point |
≤50 points touch,20points writing |
|
Minimum recognition |
2mm |
|
Writing height |
3mm |
|
Touch Tool |
Finger,Passive infrared pen,Active infrared pen |
|
Response Time |
＜15ms |
|
Accuracy |
±1mm(over 90%Area) |
|
Surface Hardness |
Toughened Glass with Level 7 of Mohs Standard |
|
Output Coordinate |
32767×32767 |
3.2.Android System Parameters
|
System Version |
Android 13 |
|
Chipset |
RK3588 |
|
CPU |
A55*4+A76*4 |
|
GPU |
Mali-G52*8 |
|
RAM/ROM |
16GB/256GB |
|
Wifi &Bluetooth |
Support |
|
FRONT |
Type-C (USB) |
1 |
|
HDMI IN |
1 |
|
|
Touch |
1 |
|
|
USB 3.0 |
2 |
|
|
REAR |
TYPE C IN |
1 |
|
TYPE C OUT |
1 |
|
|
TOUCH |
2 |
|
|
USB 3.0 |
2 |
|
|
HDMI IN |
3 |
|
|
HDMI OUT |
1 |
|
|
DP IN |
1 |
|
|
BOTTOM |
LINE OUT |
1 |
|
RJ45 IN |
1 |
|
|
RJ45 OUT |
1 |
|
|
VGA |
1 |
|
|
PC AUDIO |
1 |
|
|
USB 2.0 |
1 |
|
|
COAX OUT |
1 |
|
|
RS232 |
1 |
|
|
TOUCH |
1 |
3.4.General Parameters
|
Model |
LED75H12S-2 |
|
Power Supply |
100-240V~50/60Hz |
|
Overall Power (nominal power) |
246.8W |
|
Standby Power |
≤0.5W |
|
Speaker Type |
Two Sound channel/ 2.1 Sound channel（Optional） |
|
Output Power |
2×10W / (Optional 2×10W) |
|
Outline(mm) |
1707×1025×88 |
|
Package(mm) |
L1855×W160×H1155 |
|
Net(kgs) |
50.6kg |
|
Gross (kgs) |
66.28kg |
|
VESA(mm) |
600×400 |
|
Working temperature |
0℃~40℃ |
|
Working humidity |
10%RH~90%RH |
|
Storage temperature |
-20℃~60℃ |
|
Storage humidity |
10%~90% |
4.Accessories
|
Standard |
User Manual |
1piece |
|
Power Cord |
1piece(3m) |
|
|
Stylus |
2piece |
|
|
Wall Mount Bracket |
1piece |
|
|
NFC Card |
3piece |
|
|
Remote control |
1piece |
|
|
Optional |
OPSPC |
1piece√ |
|
HDMl Cable |
1piece |
|
|
Touch USB Cable |
1piece |
5.Package & Installation
5.1. Package
Note:The above is the standard packaging of the product, the actual package is subject to the detailse if you have any questions,please contact us.
6.Disclaimer
Affected by product configuration and manufacturing process, the actual bodysize/body weight may be different,please refer to the actual product.
The product pictures in this specification are for illustration only, the actual product effects (including but not limited to appearance, color, size) may be slightly different, please refer to the actual product.
In order to provide accurate specifications as much as possible, the text description and picture effects of this specification may be adjusted and revisedin real time to match the actual product performance, specifications and other information.
lf it is necessary to make the above modifications and adjustments, no special notice will be given.
