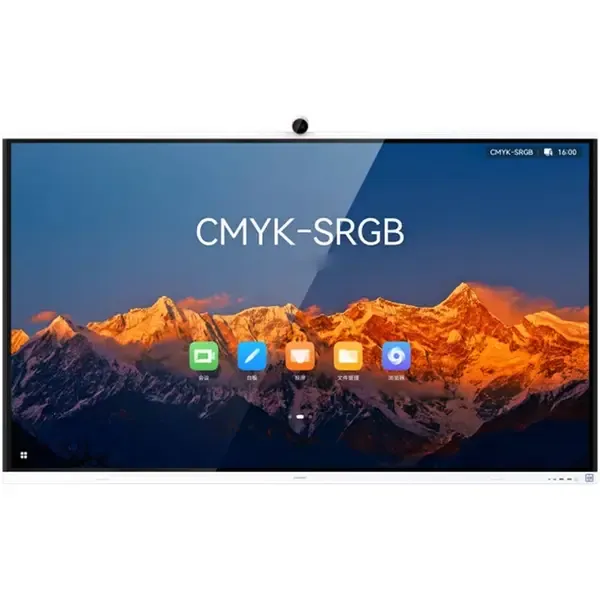

HUAWEI IdeaHub S2, IHS2-86SA 86" Inch

Huawei IdeaHub S2 IHS2-86SA Smart Interactive Whiteboard - 86" 4K UHD Touch Screen Display, 8GB RAM, 64GB Flash Memory, Smart Monitor

Key Features

• Product Name: HUAWEI IdeaHub S2
• Product Model: 86" - IHS2-86SA
• RAM: 8 GB
• Flash: 64 GB
• Operating System: HarmonyOS, Windows (OPS required)
• Security: Embedded encryption chip supporting H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE
• Language: Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, and Italian

Component:

• Device: x 1
• Stylus Pens: x 2
• Power Cable: x 1
• Wall-mounted Bracket: Optional (65", 75", and 86")
• Rolling Stand: Optional (65", 75", and 86")
• IdeaShare Key: Optional (Type-A port)
• OPS: Optional

Screen:

• Resolution: 4K (3840 x 2160 pixels)
• Backlight Type: D-LED
• Screen Lamination: Zero-gap bonding

Writing:

• Latency: 16 ms
• Touch Sensing Distance: ≤ 1.5 mm
• Intelligent Writing Recognition: Supports recognition of Chinese, English, and 11 types of graphics

Camera:

• Resolution: 4K
• Sharpness: 1800 lines
• Lens Cap for Privacy Protection: Yes
• Horizontal FoV: 80°
• TV Distortion: ＜2%

Speaker:

• Frequency Domain: 100 Hz to 20 kHz
• Number of Speaker Units: 4
• Total Power: 40 W

Microphone:

• Sound Pickup Angle: 180°
• Sound Pickup Distance: 12 m
• Frequency Domain: 80 Hz to 20 kHz
• Optimized Sound Pickup: Sound location, echo cancellation, and automatic gain control

Meeting:

• Native Meeting Apps: Huawei Cloud Meeting and WeLink
• Dual Streams: 1080p30fps + 1080p30fps / 4K8fps
• BYOM: Yes

AI Function:

• Auto-Framing: Yes
• Intelligent Tracking: Yes
• Acoustic Baffle: Yes
• DNN-Based Dereverberation: Yes

Wireless Connection:

• Wi-Fi Module: Wi-Fi 6
• Wi-Fi Frequency: 2.4 GHz + 5 GHz
• NFC: Yes

Ports:

• Video Input: HDMI cable x 1
• Video Output: HDMI cable x 1
• Audio Input: 3.5 mm (line-in) x 1, HD-AI x 1
• Audio Output: 3.5 mm (line-out) x 1
• Other Ports: USB Type-A 3.0 x 3, USB Type-C x 1, RJ45 (10/100/1000 Mbit/s LAN) x 1
