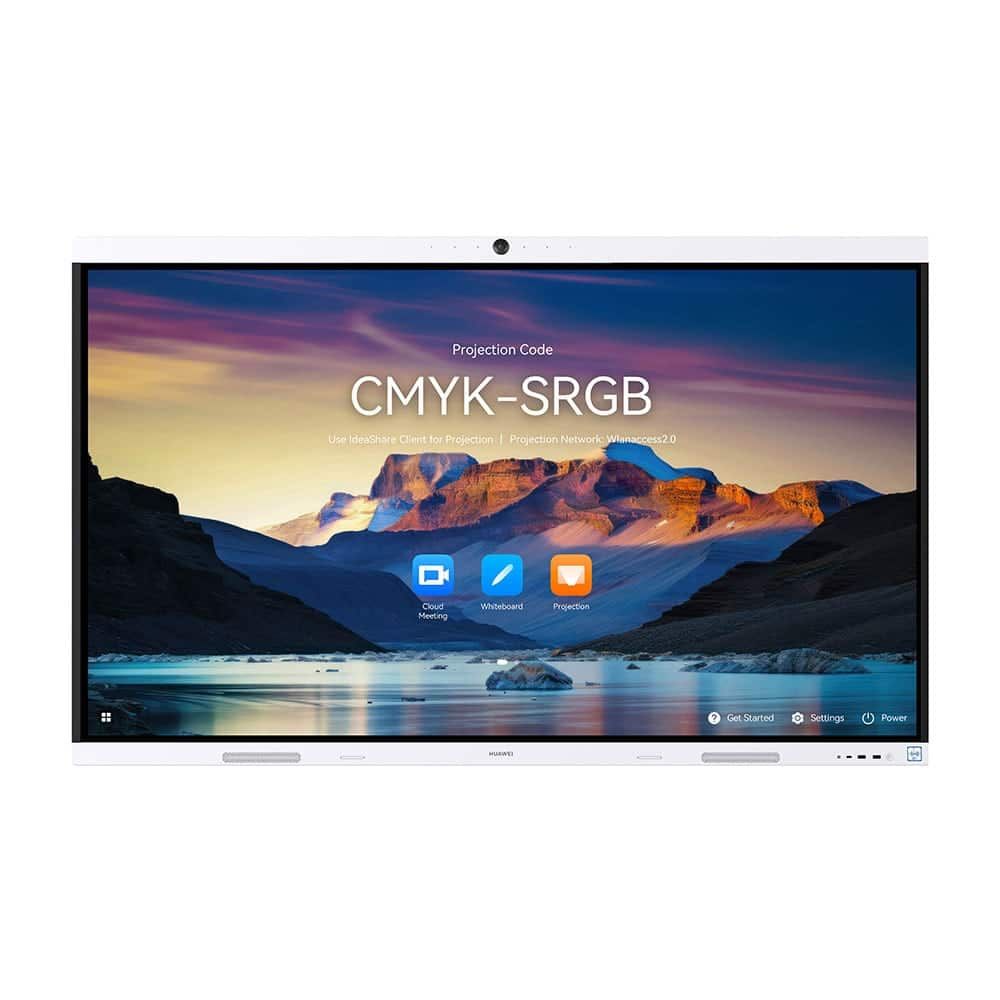

HUAWEI IdeaHub B3, IHB3-86SA 86" Inch

Huawei IdeaHub B3 IHB3-86SA Smart Interactive Whiteboard - 86" 4K D-LED Conference Screen, 8 Cores CPU, 8GB RAM + 64GB Flash Storage, Smart Monitor

Key Features

• Screen Size: 86-Inches
• Screen Resolution: 4K
• Camera: 2x digital zoom
• Backlight Type: D-LED
• Color Gamut: 85% NTSC
• TV Distortion: <2%
• Intelligent Tracking: Supported

Dimensions:

• Product Dimensions (H x W x D): 1180.6 mm x 1953.0 mm x 91.8 mm
• Package Dimensions (H x W x D): 1300 mm x 2090 mm x 250 mm

Weight:

• Net/Gross Weight: 63.0 kg / 74.5 kg

Components:

• Screen Lamination: Zero-gap bonding
• Cable Quantity: 1 x Power Cable

Audio and Microphone:

• Speaker: 30W
• Frequency Domain: 100 Hz to 20 kHz
• Microphone: 6, 10m sound pickup distance
• Sound Pickup Angle: Supported

Connectivity:

• Wireless Connection: Wi-Fi 6, NFC supported
• Frequency: 2.4 GHz + 5 GHz
• Front-Panel Ports: 1x Type-C, 2x USB 3.0
• Side-Panel Ports: 1x USB 3.0, 2x HDMI, 1x COM port
• Additional Ports: 1x HDMI OUT, 1x Line-out, 1x Line-in, 1x RJ45

System:

• CPU: 8 Cores
• RAM: 8GB
• Flash Storage: 64 GB
• Operating System: HarmonyOS and Windows (DPS required)
• Language Support: Chinese, English, French, Japanese, Spanish, Russian, Portuguese, Italian

Meeting & Whiteboard Features:

• Supported Meeting Apps: Native meeting apps: Huawei Cloud Meeting, SmartRoom
• Writing Latency: 16 ms
• Whiteboard Saving Mode: QR code scanning, local storage, USB flash drive
• Meeting Performance: BYOM, 1080p@30fps video supported
• Intelligent Writing Recognition: Supported
• Touch Sensing Distance: 15 mm
