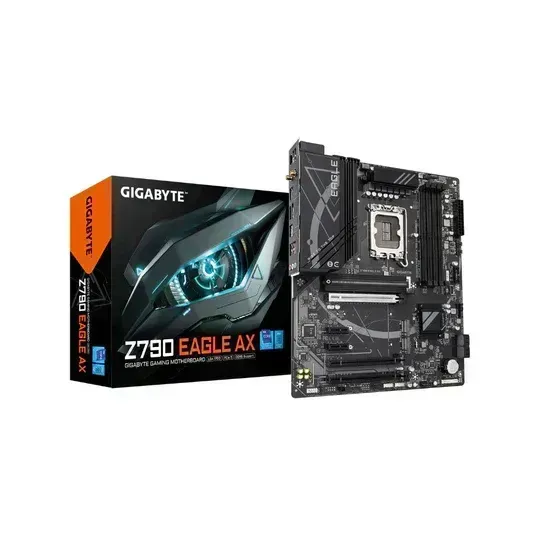

Gigabyte Z790 EAGLE AX, WIFI 6E

Motherboard Specification

CPU Socket: LGA1700, Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors (L3 cache varies with CPU)
Chipset: Intel® Z790 Express Chipset

Memory:

• DDR5 7600(O.C) to 4400MT/s (14th and 13th Gen i9/i7)
• DDR5 4800/4400MT/s (13th Gen i5/i3 and 12th Gen Intel® Core™, Pentium® Gold, and Celeron®)
• 4 x DDR5 DIMM (up to 256 GB), Dual channel, ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, XMP Support

Graphics:

• Intel® HD Graphics
• 1 x HDMI 2.1 (4096x2160@60 Hz)
• 1 x DisplayPort 1.2 (4096x2304@60 Hz)

Audio:

• Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Networking:

• Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
• Intel® Wi-Fi 6E AX211 (WiFi 6E, Bluetooth 5.3)
• Realtek® Wi-Fi 6E RTL8852CE (WiFi 6E, Bluetooth 5.3)

Expansion Slots:
CPU:

• 1 x PCIe 5.0 x16 (supports graphics card or NVMe SSD)

Chipset:

• 1 x PCIe 4.0 x4
• 1 x PCIe 3.0 x1
• 2 x PCIe 3.0 x1

Storage Interface:
CPU:

• 1 x M.2 PCIe 4.0 x4/x2

Chipset:

• 1 x M.2 PCIe 4.0 x4/x2
• 1 x M.2 PCIe 4.0 x4/x2 (SATA support)
• 4 x SATA 6Gb/s
  RAID Support: RAID 0, 1, 5, 10 for NVMe & SATA

USB Ports:
Chipset:

• 1 x USB 3.2 Gen 2 Type-C® (back)
• 1 x USB 3.2 Gen 1 Type-C® (internal)
• 1 x USB 3.2 Gen 2 Type-A (back)
• 6 x USB 3.2 Gen 1 (4 back, 2 internal)
• 6 x USB 2.0/1.1 (2 back, 4 internal)

Internal I/O Connectors:

• 24-pin ATX, 2 x 8-pin ATX 12V
• CPU fan header, CPU fan/water cooling pump header
• 3 x system fan headers, system fan/water cooling pump header
• 2 x addressable LED headers, RGB LED header
• 3 x M.2 connectors, 4 x SATA 6Gb/s connectors
• USB Type-C® (Gen 1) header, USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• TPM header, power button, Q-Flash Plus button, reset button, reset jumper, Clear CMOS jumper

Back Panel I/O Ports:

• 1 x PS/2 keyboard/mouse port
• 1 x USB Type-C® (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 2 Type-A (red)
• 4 x USB 3.2 Gen 1
• 2 x USB 2.0/1.1
• 2 x SMA antenna connectors
• 1 x HDMI
• 1 x DisplayPort
• 1 x RJ-45
• 3 x audio jacks

BIOS:

• 256 Mbit flash, AMI UEFI BIOS
• Q-Flash, Q-Flash Plus, Smart Backup

Unique Features:

• GIGABYTE Control Center (GCC), Norton® Internet Security (OEM)

Operating System Support:

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor:

• ATX (30.5 cm x 24.4 cm)
