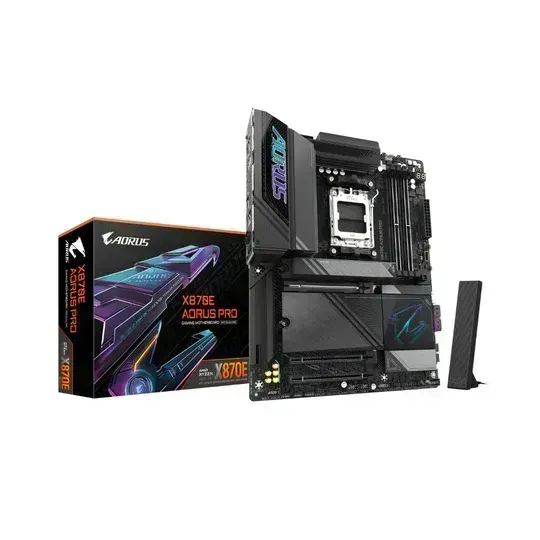

Gigabyte X870E AORUS PRO

Motherboard Specification

CPU Socket: AMD Socket AM5
Chipset: AMD X870E

Memory: 4 x DDR5 DIMM, up to 256 GB, Dual channel, Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s, AMD EXPO™ and XMP support
Graphics: Integrated AMD Radeon™ Graphics, 2 x USB4® Type-C® (3840x2160@240Hz), HDMI 2.1 (4096x2160@60Hz), HDMI 1.4 (1920x1080@30Hz)
Audio: Realtek® ALC1220 CODEC, High Definition Audio 2/4/5.1/7.1-channel, S/PDIF Out
Networking: Realtek® 2.5GbE LAN, Qualcomm® Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.3

Expansion Slots:

• 1 x PCIe x16 (PCIe 5.0 x16 or x8)
• 1 x PCIe x16 (PCIe 4.0 x4)
• 1 x PCIe x16 (PCIe 3.0 x4)

Storage Interface:

• 1 x M.2 (PCIe 5.0 x4/x2)
• 2 x M.2 (PCIe 5.0 x4/x2)
• 1 x M.2 (PCIe 4.0 x4/x2)
• 4 x SATA 6Gb/s
  RAID Support: RAID 0, 1, 5, 10 (NVMe and SATA)

USB Ports:

• 2 x USB4® Type-C® (back)
• 1 x USB 3.2 Gen 2 Type-A (red, back)
• 1 x USB Type-C® (USB 3.2 Gen 2x2)
• 2 x USB 3.2 Gen 2 Type-A (red, back)
• 8 x USB 3.2 Gen 1 (4 back, 4 internal)
• 6 x USB 2.0/1.1 (2 back, 4 internal)

Internal I/O Connectors:

• 1 x 24-pin ATX main power
• 2 x 8-pin ATX 12V power
• 1 x CPU fan, 1 x CPU/water pump, 4 x system fan, 2 x system fan/water pump
• 3 x RGB Gen2, 1 x RGB LED
• 4 x SATA 6Gb/s, 4 x M.2
• 1 x front panel, 1 x front audio
• 1 x USB Type-C® (USB 3.2 Gen 2x2), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
• 1 x noise detection, 1 x HDMI
• 1 x TPM header, 1 x power button, 1 x reset button
• 2 x temperature sensor, 1 x reset jumper, 1 x Clear CMOS jumper

Back Panel I/O Ports:

• 2 x USB 2.0/1.1
• 4 x USB 3.2 Gen 1
• 2 x USB4® Type-C®
• 3 x USB 3.2 Gen 2 Type-A (red)
• 1 x HDMI
• 1 x RJ-45 LAN
• 2 x antenna connectors
• 1 x optical S/PDIF Out
• 2 x audio jacks
• 1 x Q-Flash Plus button

BIOS: AMI UEFI BIOS, 256 Mbit flash
Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Operating System Support: Windows 11 64-bit
Form Factor: ATX (30.5cm x 24.4cm)
