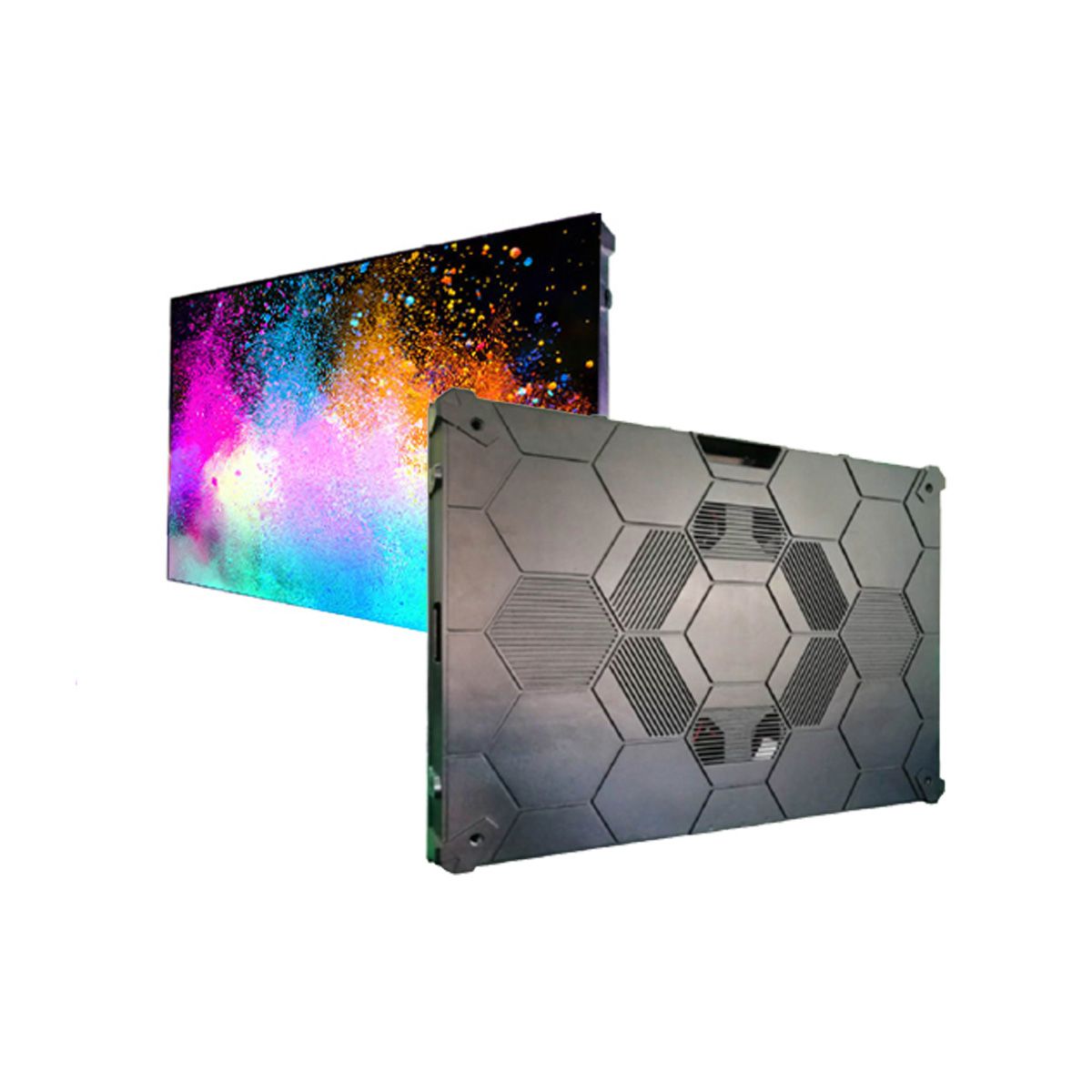

DS-D41Q25CA-1PH P2.5, 320 mm × 160 mm, Indoor LED

Supports seamless image stitching in any direction, size and shape and displays stitched images uniformly and consistently without black lines  Uses the ultra-high refresh rate to display delicate and smooth video images  Uses the broadcast grayscale processing to show more image details  High brightness an d high contrast

Product Model Product Model DS-D41Q25CA-1PH Module Pixel Configuration SMD Pixel Pitch 2.5 mm Lamp Bead Dimensions 1515 Dimensions of Module 320 mm × 160 mm Module Resolution 128 × 64 Pixel Density 160000 Signal Source Interface HUB75E Display White Balance Brightness 550 nits Color Temperature 3000K to 10000K adjustable Viewing Angle 160°(H)/160°(V) Brightness Uniformity ≥ 97% Color Uniformity ≤ ± 0.003Cx, Cy Contrast Ratio 3000:1 Refresh Rate 3840 Hz Processing Performance Scanning Amount 32 Grey Level Up to 16 bit Power Max. Consumption ≤ 420 W/m2 Average Consumption < 180 W/m2 Input Voltage DC: 4.5 V to 5 V General Package Dimensions (W × H × D) 673 (W) mm × 453 (H) mm × 390 (D) mm (26.50'' × 17.83'' × 15.35'') (40 cabinets in 1 box) Packing List Several high magnetic brackets Several LED lamp beads and IC components Several signal cables and power cables Gross Weight 0.61 kg (24.02 lb) Net Weight 0.48 kg (18.90 lb) Working Environment Working Temperature -10 °C to 40 °C (14 °F to 104 °F) Working Humidity 10% RH to 80% RH (without condensation) Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity 10% RH to 85% RH (without condensation)
