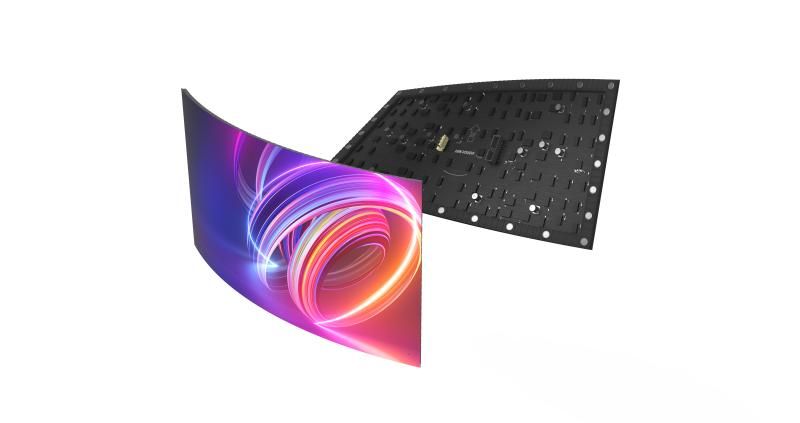

DS-D41Q18CA-1PH P1.86, 320 mm × 160 mm, Indoor LED

Supports seamless image stitching in any direction, size and shape and displays stitched images uniformly and consistently without black lines Uses the ultra-high refresh rate to display delicate and smooth video images Uses the broadcast grayscale processing to show more image details High brightness and high contrast

Specification Model DS-D41Q18CA-1PH Product Model Product Model DS-D41Q18CA-1PH Pixel Configuration Pixel Pitch SMD 1.86 mm Lamp Bead Dimensions 1515 Module Dimensions of Module Module Resolution 320 mm × 160 mm 172 × 86 Pixel Density 288906 Signal Source Interface HUB75E White Balance Brightness Color Temperature 550 nits 3000K to 10000K adjustable Viewing Angle 160° (H)/160° (V) Display Brightness Uniformity ≥ 97% Color Uniformity ≤ ± 0.003Cx, Cy Contrast Ratio 3000:1 Refresh Rate 3840 Hz Processing Performance Scanning Amount Grey Level 43 Up to 16 bit Max. Consumption Power Average Consumption Input Voltage ≤ 600 W/m2 < 290 W/m2 DC: 4.5 V to 5 V Package Dimensions (W × H × D) 673 (W) mm × 453 (H) mm × 390 (D) mm (26.50'' × 17.83'' × 15.35'') General Packing List Gross Weight (40 cabinets in 1 box) Several high magnetic brackets Several LED lamp beads and IC components Several signal cables and power cables 0.61 kg (24.02 lb) Net Weight 0.48 kg (18.90 lb) Working Temperature -10 °C to 40 °C (14 °F to 104 °F ) Working Environment Working Humidity Storage Temperature 10% RH to 80% RH (without condensation) -20 °C to 60 °C (-4 °F to 140 °F ) Storage Humidity 10% RH to 85% RH (without condensation)
