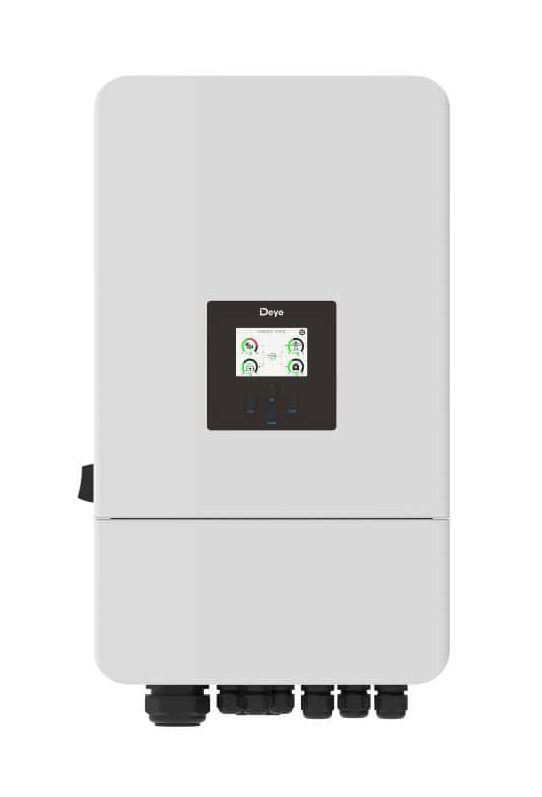

Deye 8kW Single Phase Inverter – IP66

Model

SUN-8K-SG01LP1-EU

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

40-60

Max. Charging Current (A)

190

Max. Discharging Current (A)

190

External Temperature Sensor

Yes

Charging Curve

3 Stages / Equalization

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W)

10400

Rated PV Input Voltage (V)

370 (125-500)

Start-up Voltage (V)

125

MPPT Voltage Range (V)

150-425

Full Load DC Voltage Range (V)

200-425

PV Input Current (A)

26+26

Max. PV I (A)

44+44

No.of MPP Trackers

2

No.of Strings per MPP Tracker

2+2

AC Output Data

Rated AC Output Active Power (W)

8000

Max AC Output Active Power (W)

8800

AC Output Rated Current (A)

36.4/34.8

Max. AC Output Current (A)

40/38.3

Max. Continuous AC Pass through (A)

50

Peak Power (off grid)

2 time of rated power, 10 S

Power Factor Adjustment Range

0.8 leading to 0.8 lagging

Power Factor

1

Output Frequency and Voltage

50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase), L/N/PE 220/230Vac (single phase)

Grid Type

Split Phase; 2/3 phase; Single Phase

Total Harmonics Current Distortion (THDi)

<3% (of nominal power)

DC Current Injection

<0.5% In

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Integrated

Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection

Over Voltage Category

DC Type II/AC Type III

Certifications and Standards

Grid Regulation

EN 50549, UNE 217002, NRS 097, IEEE 1547.1, SRD V2.0

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, UL 1741

General Data

Operating Temperature Range (℃)

-40-60℃, >45℃ Derating

Cooling

Smart Cooling

Noise (dB)

≤30 dB

Communication with BMS

RS485; CAN

Weight (kg)

32

Cabinet Size (W*H*D mm)

420×670×233 (Excluding Connectors and Brackets)

Protection Degree

IP65

Installation Style

Wall-mounted

Warranty

5 Years (10 Years Optional)
