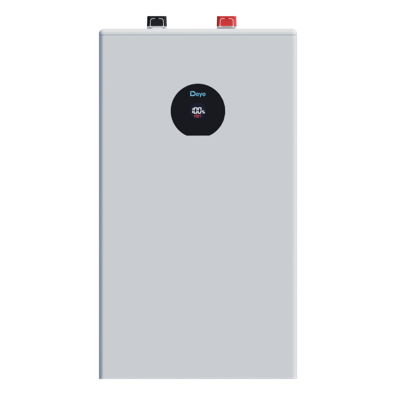

Deye 16kw SE-F16 Battery
د.ع2,950,000
متوفر في المتجر
حفظ هذا المنتج في وقت لاحق
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
تفاصيل المنتج
| Main Parameters | SE-F16 |
|---|---|
| Battery Chemistry | LiFePO4 |
| Capacity | 314 Ah |
| Scalability [1] | Max. 32 pcs in parallel |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V ~ 57.6 V |
| Nominal Energy | 16 kWh |
| Charge Current [2] Recommend | 157 A |
| Charge Current [2] Max. Continuous | 160 A |
| Charge Current [2] Peak | 280 A (10 sec) |
| Discharge Current [2] Recommend | 157 A |
| Discharge Current [2] Max. Continuous | 230 A |
| Discharge Current [2] Peak | 280 A (10 sec) |
| Other Parameter | |
|---|---|
| Recommend Depth of Discharge | 90% DoD |
| Dimension ( W × H × D ) (Without hanging board)mm | 400 × 708 × 233 |
| Weight Approximate | 109 kg |
| LED Indicator | LED ( SOC, working, protecting ) & Buzzer |
| IP Rating of Enclosure | IP21 |
| Operating Temperature | Charge: 0～55℃ / Discharge: -20～55℃ |
| Storage Temperature | 0℃~35℃ |
| Relative Humidity | 95% (non-condensing) |
| Altitude | ≤3000m |
| Cycle Life | ≥6000(25℃±2℃ ,70%EOL) |
| Installation | Wall-Mounted, Floor-Mounted, Stack-Mounted |
| Communication | CAN2.0, RS485, Bluetooth+APP |
| Warranty Period [3] | 10 years |
| Energy Throughput [3] | 50 MWh |
| Certification | UN38.3, MSDS, CE, CB |
Deye 16kw SE-F16 Battery
