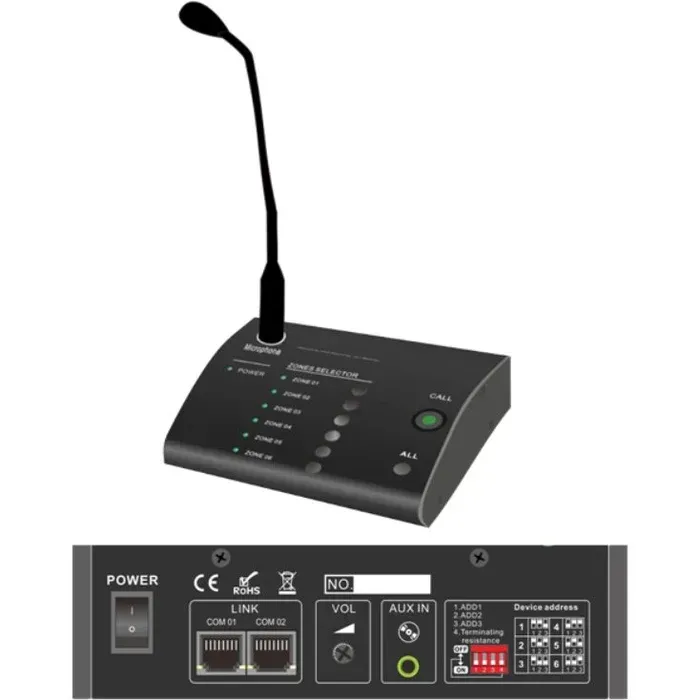

CMX 6-Zone Remote Paging Microphone for PA-6000 Series Amplifiers, CAT6 Connectivity, Chime, Zone Control, Daisy-Chain, Powered by Amplifier

6-Zone Remote Paging Microphone for PA-6000 Series Amplifiers

The PA-6000RM is a professional remote paging microphone designed for multi-zone public address systems. Compatible with PA-6000 series amplifiers, it enables easy communication and control across six speaker zones, with features like chime alerts, zone indicators, and priority settings. Ideal for schools, malls, offices, and more.

Key Features:

• Compatible with PA-6030MX, PA-6060MX, PA-6120MX, PA-6030MW, PA-6060MW, PA-6120MW
• Supports individual, group, and all-zone paging
• Connect up to 6 remote microphones per amplifier
• 6 zone selection buttons with status indicators
• Built-in call button and chime function
• Microphone priority control via dip switch
• Direct power supply from amplifier (24V DC)
• CAT6 communication up to 200 meters
• RJ45 ports for amplifier and daisy-chaining
• Aux input and microphone volume control

Specifications:

• Model: PA-6000RM
• Zones: 6
• Mic Input: 5mV, 600Ω
• Aux Input: 350mV, 10kΩ
• Frequency Response: 80Hz–16kHz
• THD: <1% at RMS, 1kHz
• S/N Ratio: >70dB
• Power Consumption: 3W
• Power Supply: 24V DC ±20% (from amplifier)
• Operating Temperature: -20℃ to +70℃
• Humidity: <95% (non-condensing)
• Dimensions: 153 × 52 × 175mm
• Weight: 0.8kg
