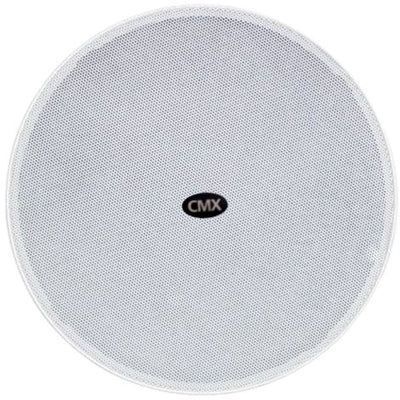

CMX 5.25" 2-Way Ceiling Speaker with 100V Transformer & Back Can – 20W/8Ω, Frameless Magnetic Grille, Ideal for PA & Commercial Audio

Product Description

The CSK-512HTM is a high-performance 5.25” 2-way ceiling speaker designed for commercial audio and PA systems. This version features an integrated 100V transformer with selectable power taps and 8 Ohm input, plus a durable ABS back can for optimal acoustic performance. With its frameless magnetic grille and hi-flex polypropylene cone, it offers both elegant aesthetics and superior sound clarity.

• Premium slim-line 2-way coaxial ceiling speaker
• 100V transformer with power taps: 20W / 10W / 5W / 2.5W & 8 Ohm
• 5.25” woofer + 1” tweeter for full-range sound reproduction
• Magnetic frameless grille and ABS baffle for a modern look
• Back can included for enhanced sound containment
• Flush mount spring-clip installation for fast and secure setup
• Ideal for public address, commercial background music, and retail environments

Specifications

• Model: CSK-512HTM
• Description: 5.25” 2-Way Ceiling Speaker
• Power Output: 20W RMS / 40W Max (8 Ohms)
• Power Taps: 20W / 10W / 5W / 2.5W & 8 Ohm
• Sensitivity (1W/1m): 89dB
• Max SPL: 101dB
• Frequency Response: 60Hz – 20kHz
• Finish: ABS baffle (black), Magnetic steel grille (white), ABS back can
• Speaker Driver: 5.25" bass + 1" tweeter (2-way coaxial)
• Cutout Size: Ø180mm
• Dimensions: Ø205 × 130mm
• Weight: 1.5kg
