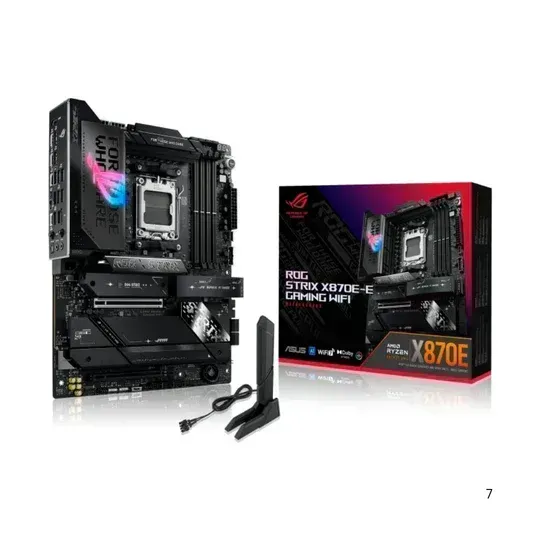

ASUS ROG STRIX X870E-E GAMING WIFI

Motherboard Specification – ROG STRIX X870E-E GAMING WIFI

• Processor Support:
  AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors (Socket AM5)
• Chipset:
  AMD X870E
• Memory Support:
  4 x DDR5 DIMM slots, up to 256GB
  • Up to 8400+MT/s (OC) depending on CPU
  • ECC & Non-ECC Un-buffered DIMMs
  • Dual Channel
  • Supports EXPO™, AEMP, NitroPath DRAM
• Graphics Ports:
  • 1 x HDMI™ (max 4K@60Hz)
  • 2 x USB4® Type-C® (DisplayPort Alt Mode, max 4K@60Hz)
• Expansion Slots:
  • 1 x PCIe 5.0 x16 (Ryzen 9000/7000)
  • 1 x PCIe 4.0 x16 (Ryzen 8000)
  • 1 x PCIe 4.0 x16 (x4 mode, from chipset)
• Storage:
  • 5 x M.2 slots:
    • M.2_1, M.2_2, M.2_3: PCIe 5.0 x4 (Ryzen 9000/7000) / 4.0 (Ryzen 8000)*
    • M.2_4, M.2_5: PCIe 4.0 x4
  • 4 x SATA 6Gb/s
  • Supports RAID 0/1/5/10 (RAID 5 only on Ryzen 9000)
• Ethernet:
  • 1 x Realtek 5Gb LAN
  • ASUS LANGuard
• Wireless & Bluetooth:
  • Wi-Fi 7 (2x2, up to 6.5Gbps)
  • Bluetooth® 5.4
• USB:
  • Rear:
    • 2 x USB4® (40Gbps, Type-C®)
    • 1 x USB 20Gbps (Type-C®, 30W PD Fast-charge)
    • 10 x USB 10Gbps (9 x Type-A + 1 x Type-C®)
  • Front:
    • 1 x USB 20Gbps Type-C®
    • 4 x USB 5Gbps (via 2 headers)
    • 6 x USB 2.0 (via 3 headers)
• Audio:
  • ROG SupremeFX 7.1 (ALC4080)
  • SNR: 120dB playback / 110dB recording
  • Supports 32-bit/384kHz
  • Savitech AMP, optical S/PDIF out, gold-plated jacks
• Internal I/O Connectors:
  • 1 x 24-pin + 2 x 8-pin CPU power
  • 5 x Chassis Fan headers + CPU/OPT + AIO Pump
  • 5 x M.2, 4 x SATA
  • USB: 1 x 20Gbps, 2 x 5Gbps headers, 3 x USB 2.0 headers
  • 3 x ARGB Gen 2 headers, FlexKey, Start Button, Thermal Sensor
• Back Panel I/O Ports:
  • 2 x USB4® Type-C®
  • 1 x USB 20Gbps Type-C® (30W PD)
  • 10 x USB 10Gbps (9 x Type-A, 1 x Type-C®)
  • 1 x HDMI™
  • 1 x 5Gb Ethernet
  • 2 x Audio jacks (gold-plated) + Optical S/PDIF
  • BIOS FlashBack™, Clear CMOS, Wi-Fi module
• Form Factor:
  ATX (30.5 cm x 24.4 cm)
