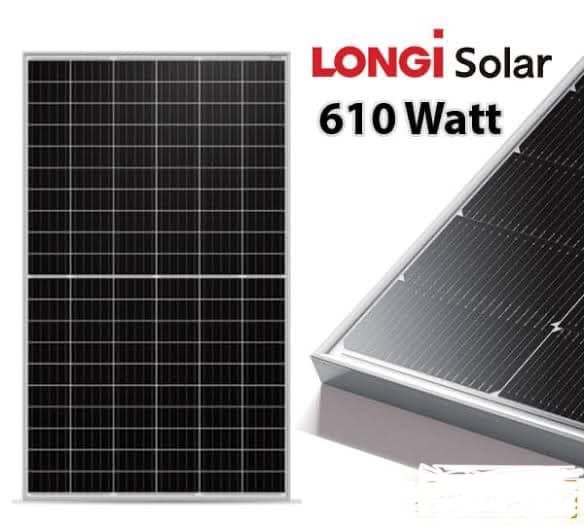

610W Bifacial Longi (Himo7-610w)
ع.د184,275
متوفر في المتجر
حفظ هذا المنتج في وقت لاحق
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
تفاصيل المنتج
Module Power
610
Module Efficiency <%> 22.60
Product Warranty
12 Years
Power Warranty
30 Years
Mechanical Parameters
Layout
144（6×24）
Junction box
Split junction box, IP68, 3 diodes
Weight
31.8kg
Size
2278×1134×30mm
Packaging
36pcs./pallet 144pcs./20GP 720pcs./40 HC
Electrical Performance Parameters (STC Test)
Module Model
LR7-72HGD-605M
LR7-72HGD-610M
LR7-72HGD-615M
LR5-72HGD-620M
Maximum power (Pmax/W)
605
610
615
620
Open-circuit voltage (Voc/V)
52.44
52.55
52.66
52.77
Short circuit current (Isc/A)
14.61
14.69
14.77
14.85
Peak power voltage (Vmp/V)
44.00
44.11
44.22
44.33
Peak power current (Imp/A)
13.75
13.83
13.91
13.99
STC: Standard test conditions
Electrical Performance Parameters (NOCT Test)
Module Model
LR5-72HGD-605M
LR5-72HGD-610M
LR5-72HGD-615M
LR5-72HGD-620M
Maximum power (Pmax/W)
460.6
464.4
4688.2
472.0
Open-circuit voltage (Voc/V)
49.84
49.94
50.04
50.15
Short circuit current (Isc/A)
11.74
11.80
11.86
11.92
Peak power voltage (Vmp/V)
41.82
41.92
42.03
42.13
Peak power current (Imp/A)
11.02
11.08
11.14
11.21
NOCT: Normal operating cell temperature
Mechanical Load Capacity
Maximum static load on the front (such as snow and wind)
5400Pa
Maximum static load on the back (such as wind)
2400Pa
Hail test
Diameter 25 mm, impact speed 23 m/s
Temperature Coefficient (STC test)
Temperature coefficient of short circuit current (Isc)
+0.045%/℃
Temperature coefficient of open circuit voltage (Voc)
-0.230%/℃
Temperature coefficient of peak power (Pmax)
-0.280%/℃
